HOOK-UP CONNECTION

UNITS

These cost effective and hard-wearing hook-up units are suitable for all caravan and holiday parks requirements.  Specifically designed to provide 6A up to 32A metered or non-metered electrical supply combined with earth leakage and overload protection.

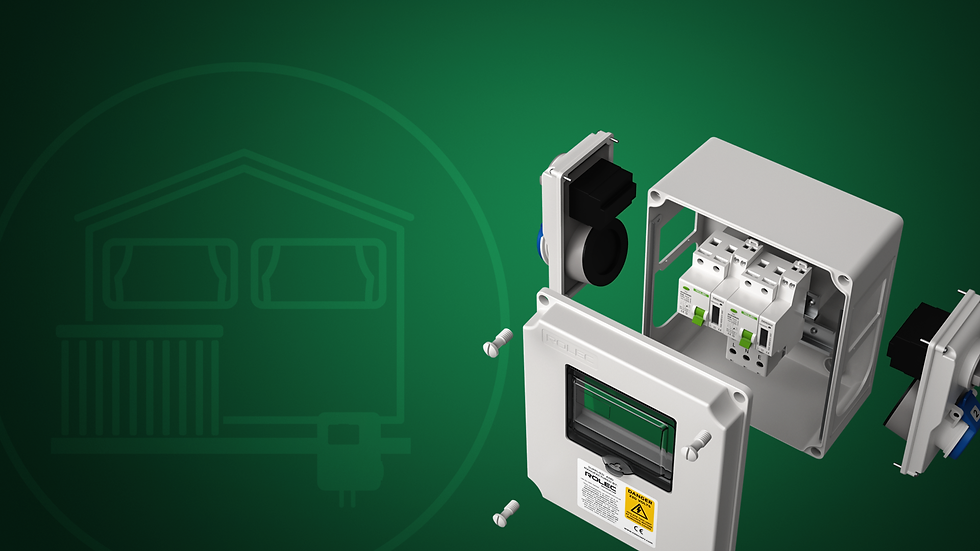

Every unit is complete with an RCBO providing overload and 30mA fault current protection, accessible via a waterproof customer re-set flap as well as a set of 3 x 35mm incoming cable connection terminals.

HOOK-UP CONNECTION UNITS

KEY FEATURES

TOURING/STATIC CARAVANS & CAMP SITES

TOURING/STATIC CARAVANS & CAMP SITES

UV STABILISED

UV STABILISED

MULTIPLE SWITCHGEAR ARRANGEMENTS

MULTIPLE SWITCHGEAR ARRANGEMENTS

STRONG & DURABLE

STRONG & DURABLE

IP65 WEATHER PROOF

IP65 WEATHER PROOF

CE CERTIFIED

CE CERTIFIED

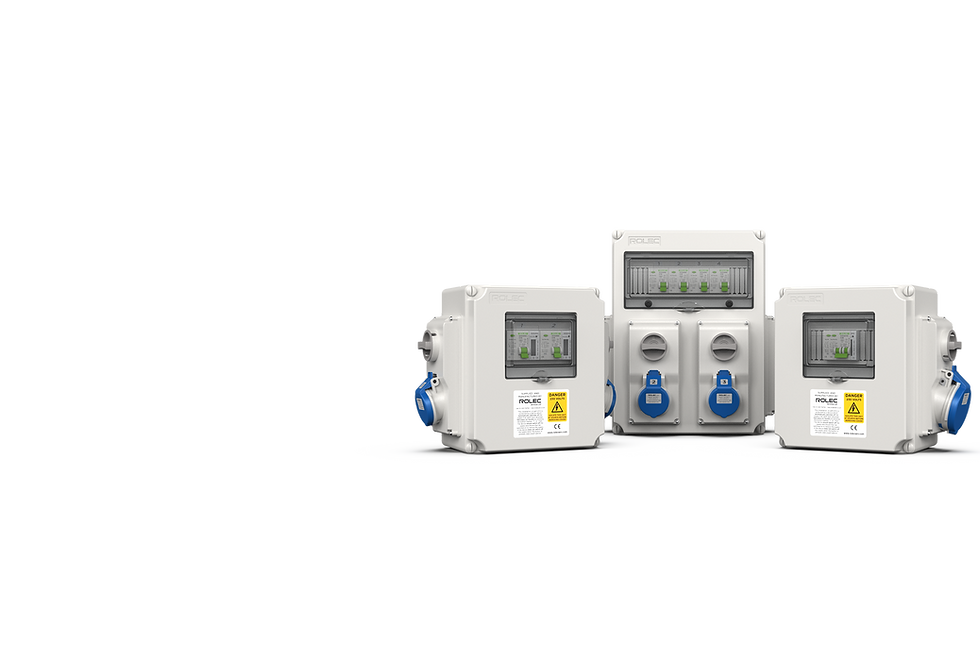

The HOOK-UP CONNECTION Range

  • Complete with IP44 sockets or IP44 interlock sockets available

  • Available in 1, 2, 3 & 4way versions

  • 6A, 10A 16A & 32A outputs available

  • Built-in overload & 30mA fault current protection

  • IP65 weatherproof polycarbonate enclosure

  • Built-in cable terminals

  • Switchgear access flap

  • kWh Metering & Pre-paid Smartcard Metering options available

  • Optional galvanised mounting post

  • Easy to install & maintain

SUITABLE FOR


STATIC CARAVANS


TOURING CARAVANS


GLAMPING


CAMPSITES

SPECIFICATIONS

MATERIALS

Polycarbonate Enclosure

DIMENSIONS

221.5mm-270mm (W) x 250mm-360mm (H) x 142mm-152mm (D)

IP RATING

Enclosures: IP65 | Sockets: IP44

OUTPUTS

6A, 10A, 16A & 32A

OVERLOAD & FAULT CURRENT PROTECTION

30mA RCBO

Sought after, cost effective hook-up connection units, providing durable solutions all year round

OPTIONAL EXTRAS

Galvanised ground mounting post

Photocell kit to control park lighting

MID compliant kWh mini-meters

Smartcard metering

CARAVAN HOOK-UPS

RELATED PRODUCT RANGES

Direct Connection Units

Direct Connection Units

WallPod Hook-Up Connection Units

WallPod Hook-Up Connection Units

Quantum Touring Pedestals

Quantum Touring Pedestals

PRODUCT CODES

LSAA0010i LSAA0010i-10A LSAA0030i LSAB0010i LSAB0010i-10A LSAB0030i LSAB0090i LSAB0110i LSAH0040i LSAH0040i-6A LSAH0040i-10A LSAH0045i LSAC0010i LSAC0010i-10A LSAC0030i LSAH0050i LSAH0050i-10A LSAH0055i LSAH0090i LSAH0090i-10A LSAH0095i LSAA0010 LSAA0030 LSAB0010 LSAB0030 LSAH0040 LSAC0010 LSAH0050 LSAH0060
