MAINS & DISTRIBUTION
UNITS
Rolec provides the ideal electrical distribution solutions for all caravan and holiday park sites, with over 30 years of experience in industry, Rolec are the go-to manufacturer for electrical mains panels and distribution units.
Meeting each individual requirement and electrical systems of any location, Rolec’s team of dedicated experts can provide a bespoke service to benefit each destination’s electrical distribution needs.
The panels and units come complete with built-in switchgear, cable terminals and, where required, metering and street light operating photocells.
KEY FEATURES
MULTIPLE SWITCHGEAR ARRANGEMENTS
IP44 - IP66 WEATHER PROOF
BESPOKE MANUFACTURING
STRONG & DURABLE
UV STABILISED
CE CERTIFIED

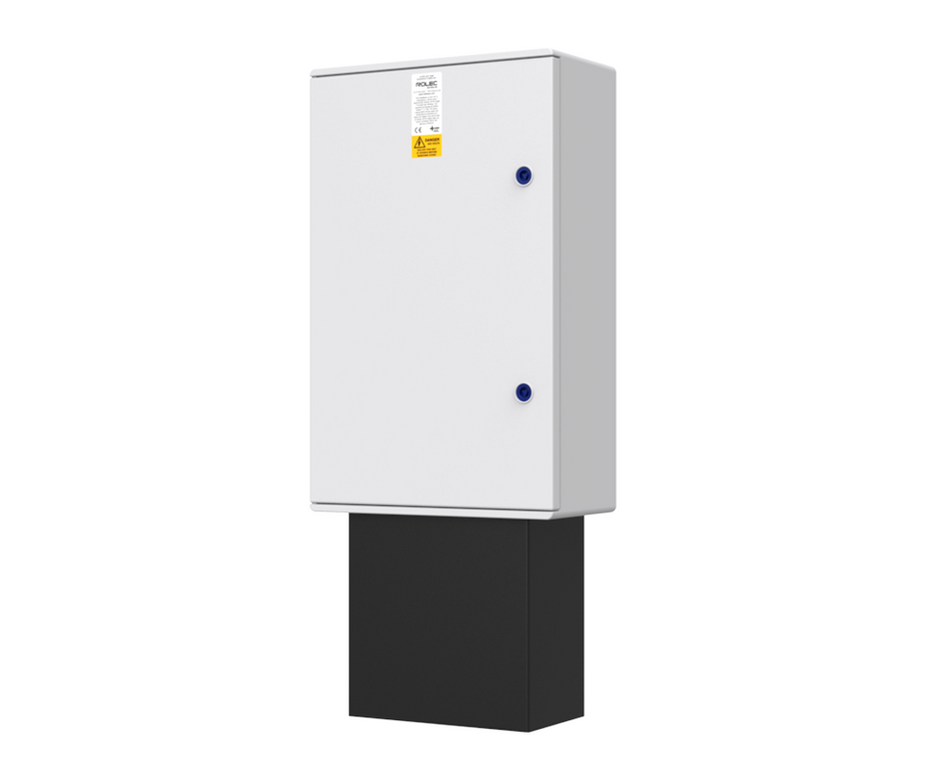

The MAINS & DISTRIBUTION Unit Range
Localised distribution of electrical circuits including circuit protection
Provides isolation, current protection and optional fault current protection
All electrical panels manufactured to suit each sites individual requirements and electrical design
GRP, stainless steel or technopolymer enclosures
Switchgear variants: 6amps to 2000amps (1Ø or 3Ø options)
Able to accommodate all switching and monitoring management solutions
Designed and built to suit all incoming and ongoing cable types and sizes
IPX5 Rated
Wall or ground (root) mountable
Galvanised steel mounting frames
Form II panels available
ABS cable entry covering shroud
SUITABLE FOR
ROAD SIDES
AMENITY AREAS
STATIC CARAVANS
COMMUNAL AREAS
SPECIFICATIONS
MATERIALS
GRP, Stainless Steel or Technopolymer Enclosures
DIMENSIONS
Technopolymer (W x H x D):
RE512 – 230mm x 316mm x 135mm
GRP (W x H x D):
RE514 – 515mm x 650mm x 250mm
RE515 – 585mm x 800mm x 300mm
RE516 – 800mm x 1060mm x 350mm
Stainless Steel (W x H x D):
S005E – 500mm x 700mm x 250mm
S006E – 600mm x 800mm x 250mm
S007E – 800mm x 1000mm x 300mm
VOLTAGE
230v or 400v (1Ø or 3Ø)
FAULT CURRENT
RCBO/RCD
OVERCURRENT PROTECTION
MCCB/MCB or Fuses
Need help with your caravan park, campsite or holiday park destinations?
Give us a call on +44 (0) 1205 724 754
DATASHEET
Need help with your caravan park, campsite or holiday park destinations?
Give us a call on +44 (0) 1205 724 754
Ideal mains and distribution equipment for your caravan sites/park destinations
OPTIONAL EXTRAS
Fault current protection
Form 2 panels
Volt & amp meters
Phase indicators
