QUANTUM

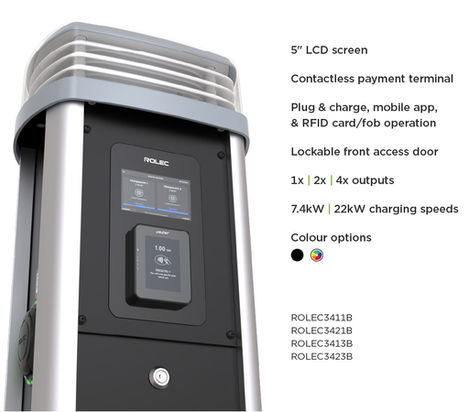

Intelligent EV charging pedestal
A sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. The integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.
This future-proof pedestal effortlessly integrates with any chosen OCPP chargepoint management system, delivering a plug-and-charge or pay-to-charge solution. EV drivers can enjoy a hassle-free charging experience, initiated via a new contactless payment option, mobile app or RFID card/fob.
Future-proof & feature rich
Plug & go, app, contactless payment (model dependant), or RFID controlled charging
Choose from 1x, 2x or 4x universal charging socket(s)
Up to 7.4kW or 22kW charging output(s)
PME fault detection (no earth rod required)
Supports dynamic load balancing & static load management
OCPP 1.6 compliant (can integrate with any back-office)
Over-the-air firmware / software updates
Built-in AC overload & fault current protection (RCBO)
Built-in 6mA DC leakage protection
Dual tamper and breach security notifications
Lockable front access door (model dependant*)
5" LCD Screen (model dependant)
Cable lock feature (can be permanently locked by user)
LED amenity lighting head (Photocell controlled)
MID-approved energy metering
4G / Wi-Fi / Ethernet connectivity
Conforms with PAS 1899 accessible charging standard (model dependant)
Strong and durable IP54 / IK10 rated
OZEV grant fundable
Designed & manufactured in the UK
*Included as standard on models with contactless payment terminal and/or LCD screen. Available as an optional upgrade on other models QUAD0001
KEY FEATURES
OCPP 1.6
compliant
Branding & colour
options available
Grant
fundable
LED amenity
lighting
4G / WI-FI / Ethernet
enabled
IP rated &
UV stabilised
THE UNIQUE & SOPHISTICATED INTELLIGENT EV CHARGING POINT, SUITABLE FOR ALL BUSINESSES & ORGANISATIONS
SUITABLE FOR
CAR PARKS
WORKPLACES
DEVELOPMENT SITES
PUBLIC LOCATIONS
SPECIFICATIONS
MATERIALS
Substructure – 2.5mm 6063 extruded Aluminium, 25 micron hard anodised protective finish
Panel – 3.2mm Aluminium composite
Door – Heavy duty 1.5mm Steel with 45–55 microns of Zinc primer and corrosive resistant, textured Polyester powder coating finish (where fitted)
Fascia – Tempered glass (where fitted)
Lens – High impact resistant 3mm Polycarbonate
Base – High impact resistant, heavy-duty 5mm Polycarbonate
Lid/collar/louvres – High impact resistant Polycarbonate
DIMENSIONS
375mm (W)
1440mm (H)
275mm (D)
CHARGE PROTOCOL
Mode 3
INPUT VOLTAGE
230V AC (±10 %)
50/60Hz (Single Phase)
400V AC (±10 %)
50/60Hz (3 Phase)
PROTECTION
Built-in AC overload & fault current protection | Built-in 6mA DC fault protection | Lightning surge, over temperature protection | PME fault detection | Supports dynamic & static load balancing
OPTIONS & ACCESSORIES
• RFID0010 | RFID card
• RFID0020 | RFID fob
• GMQR0011 | Ground mounting base for Quantum pedestal
• QUAD0001 | Front access door upgrade with RFID – Black
• EVCB0020 | Root mount protection barrier – 48mm
• EVCB0040 | Surface mount protection barrier – 48mm
• EVPS0010 | EV parking sign – A4 landscape (Other sizes are available)
• EVPP0100 | 5m 32A Type 2 to Type 2 charging cable (10m options available)
• EVPP0105 | 5m 32A Three Phase Type 2 to Type 2 charging cable (10m options available)
• ACSR0125-F | 100A up to 35mm² screened CT clamp with 10m cable
• ACSR0525 | Perific Max Fuse Protection Device with 3x 900A up to 36mm² Current Sensors
• ACSR0535 | Perific Max Fuse Protection Device with 3x 900A up to 100mm² Current Sensors
• ACSR0545 | Perific Max LAN Accessory Input Kit
• Tethered models available upon request
• Branding & colour options available

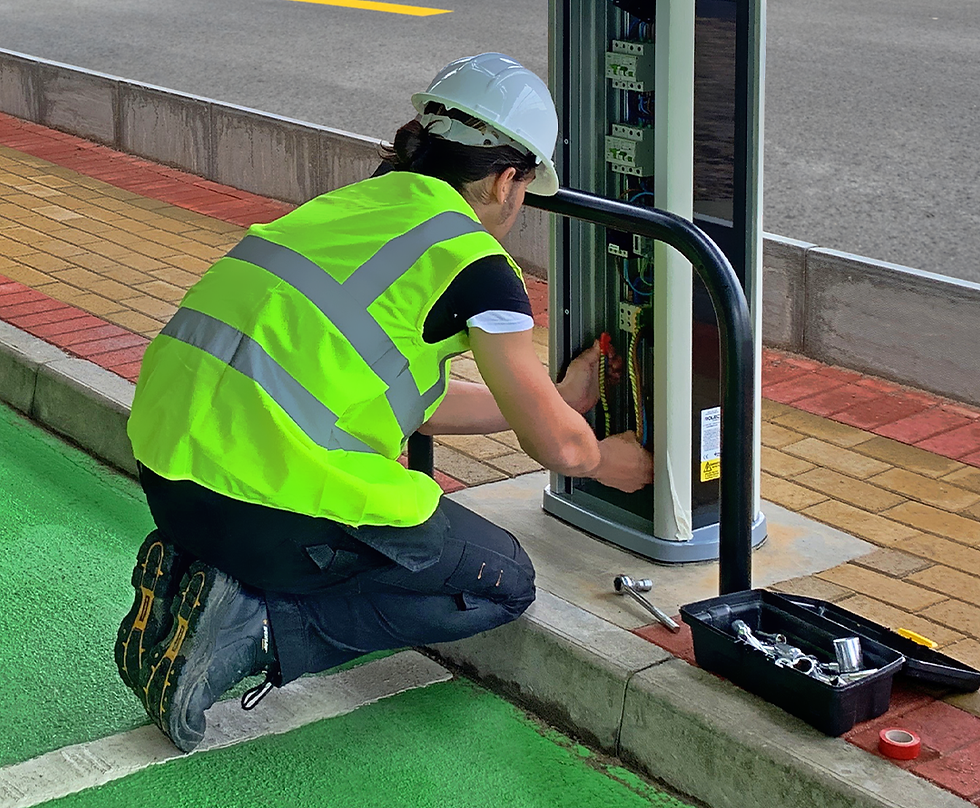

NEED AN INSTALLATION SERVICE?
