HEX
Intelligent EV charging pedestal

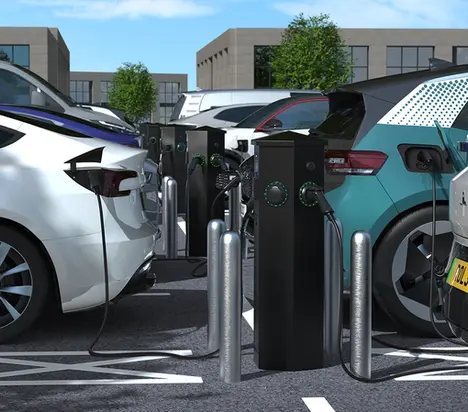

Engineered for demanding environments, the HEX pedestal features a robust steel enclosure and delivers up to 22kW charging to 4 vehicles simultaneously. The quad outlet model is perfect for centrally located bays, minimising groundworks and streamlining installation. Ideal for workplace, commercial, and public car parks.
Effortless integration with any OCPP chargepoint management system, this unit is an ideal plug-and-go or pay-to-charge solution.

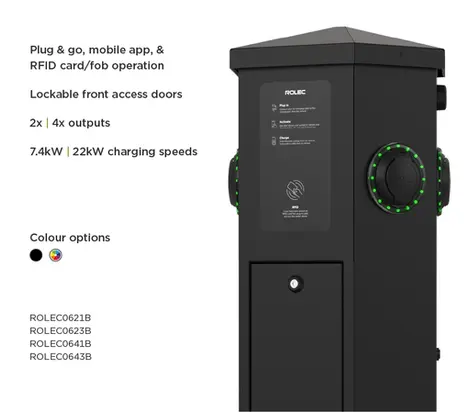

Future-proof & feature rich

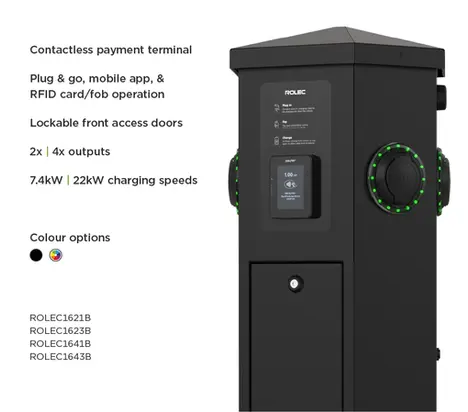

Plug & go, app, contactless payment (model dependent), or
RFID controlled charging
Choose from 2x or 4x universal charging socket(s)
Up to 7.4kW or 22kW charging output(s)
PME fault detection (no earth rod required)
Supports dynamic load balancing & static load management
OCPP 1.6 compliant (integrates with any CPMS)
Over-the-air firmware / software updates
Built-in AC overload & fault current protection (RCBO)
Built-in 6mA DC leakage protection
Dual tamper and breach security notifications
Lockable front access door(s)

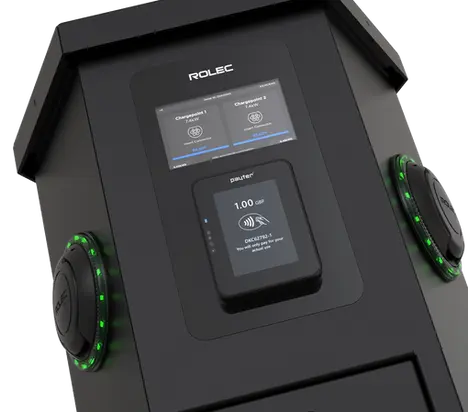

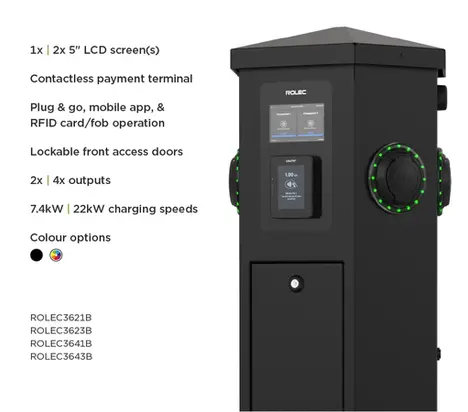

5” LCD Screen (model dependant)
Cable lock security feature (can be permanently locked by owner)
LED amenity down lighting (Photocell controlled)
MID-approved energy metering
4G / Wi-Fi / Ethernet connectivity
Conforms with PAS 1899 accessible charging standard
Strong and durable IP54 / IK10 rated
Surface or root mountable
OZEV grant fundable (UK only)
Designed & manufactured in the UK
KEY FEATURES
OCPP 1.6
compliant
Branding & colour
options available
Grant
fundable
LED amenity
down lighting
4G / WI-FI / Ethernet
enabled
IP rated &
UV stabilised

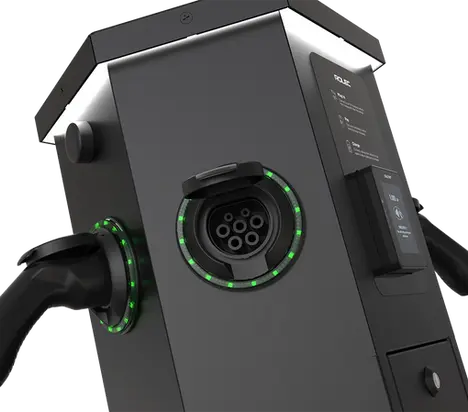

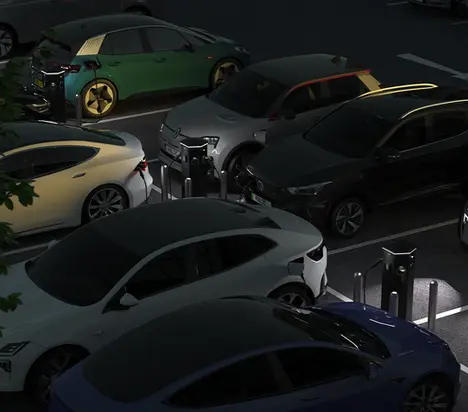

CHARGE UP TO 4 VEHICLES SIMULTANEOUSLY

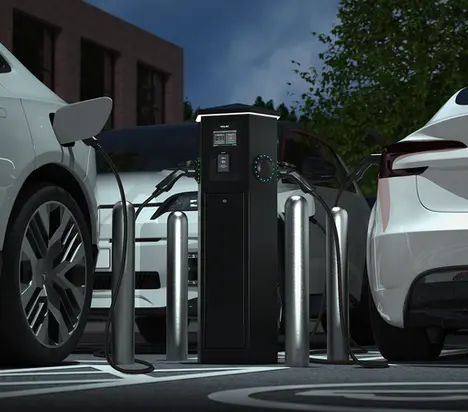

SUITABLE FOR
PUBLIC CAR PARKS
SHOPPING CENTRES
DEVELOPMENT SITES
LESIURE FACILITIES
SPECIFICATIONS
MATERIALS

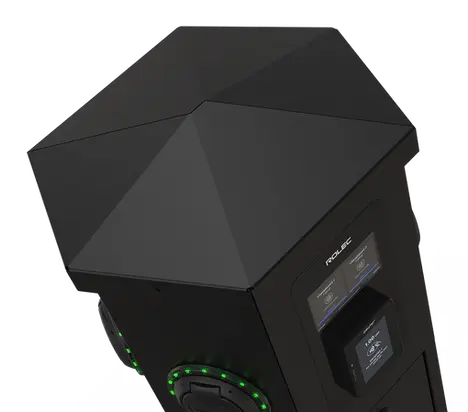

Body – Heavy duty 1.5mm Steel applied with 45–55 microns of Zinc primer
Finish – Corrosive resistant, textured Polyester powder coating
Fascia – Tempered glass
DIMENSIONS
406mm (W)
1153mm (H)
348mm (D)
CHARGE PROTOCOL
Mode 3
INPUT VOLTAGE
230V AC (±10 %)
50/60Hz (Single Phase)
400V AC (±10 %)
50/60Hz (3 Phase)
PROTECTION
Built-in AC overload & fault current protection | Built-in 6mA DC fault protection | Lightning surge, over temperature protection | PME fault detection | Supports dynamic & static load balancing
OPTIONS & ACCESSORIES
• RFID0010 | RFID card
• RFID0020 | RFID fob
• GMHP0010 | Ground mounting base for Hex pedestal
• EVCB0020 | Root mount protection barrier – 48mm
• EVCB0040 | Surface mount protection barrier – 48mm
• EVPS0010 | EV parking sign – A4 landscape (Other sizes are available)
• EVPP0100 | 5m 32A Type 2 to Type 2 charging cable (10m options available)
• EVPP0105 | 5m 32A Three Phase Type 2 to Type 2 charging cable (10m options available)
• ACSR0125-F | 100A up to 35mm² screened CT clamp with 10m cable
• ACSR0525 | Perific Max Fuse Protection Device with 3x 900A up to 36mm² Current Sensors
• ACSR0535 | Perific Max Fuse Protection Device with 3x 900A up to 100mm² Current Sensors
• ACSR0545 | Perific Max LAN Accessory Input Kit
• Branding & colour options available
