QUANTUM

PEDESTAL

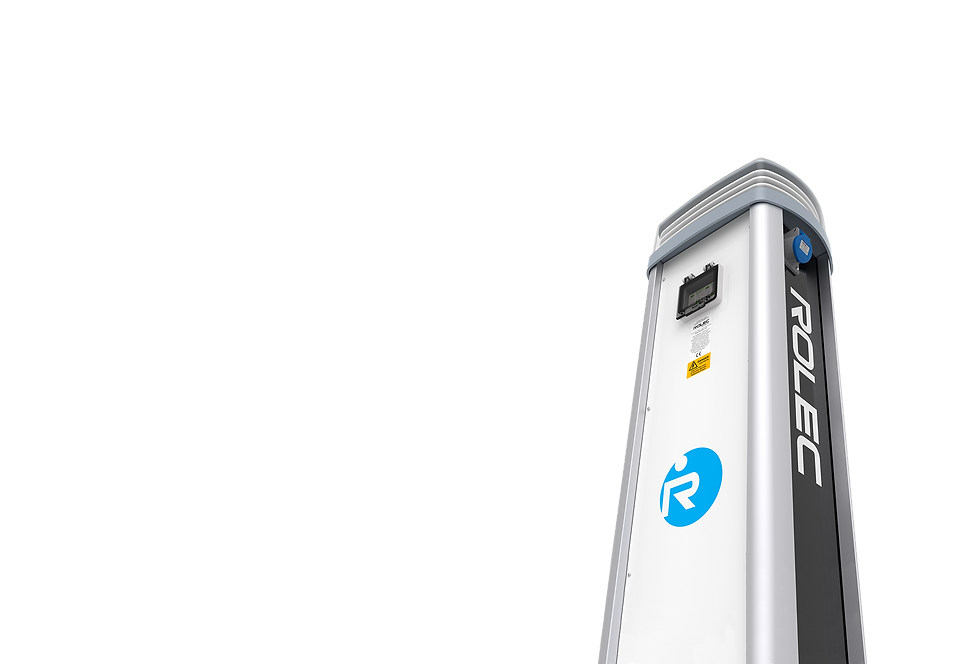

The anodised aluminium Quantum Pedestal range has proven exceptionally popular since its launch in early 2016, with over 18,000 pedestals sold to date across the world.

QUANTUM PEDESTAL

THE QUANTUM PEDESTAL RANGE

Rolec’s Quantum design embodies the qualities of our world leading, 30 years in service, Classic Pedestal complemented by the strength and aesthetics of marine grade anodised aluminium. It fuses the highest quality materials from Rolec’s range with the affordability of an entry level unit. Versatile and economical, the Quantum provides the marina industry with a powerful and impactful combination of strength and adaptability for all new developments.

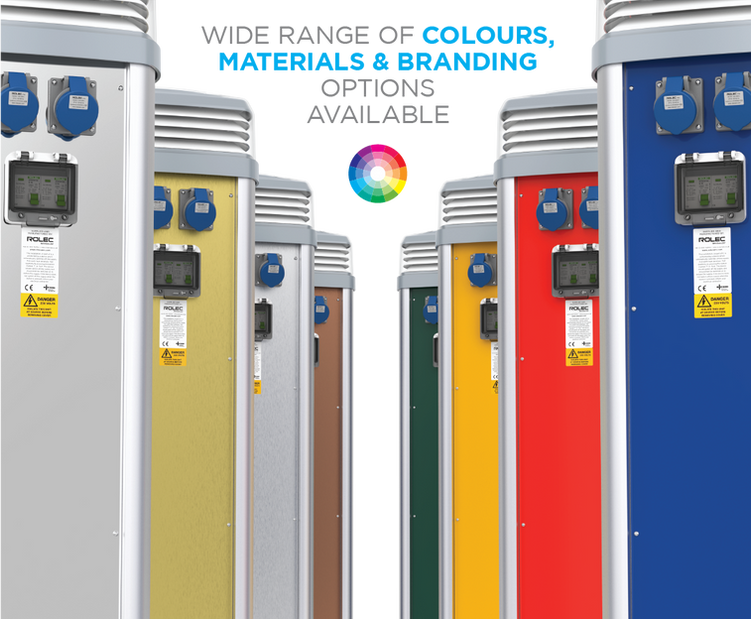

The Quantum Pedestal range is available in various sizes and the option for coloured front, back and side panels can provide your marina or waterfront development with a unique look. It also offers LED illumination and fairly limitless service outlet and management solution combinations to match your requirements.

SUITABLE FOR


MARINAS


PORTS


PONTOONS


CAR PARKS

KEY FEATURES

INTERNAL ELECTRIC, WATER & LIGHTING SEGREGATION

INTERNAL ELECTRIC, WATER & LIGHTING SEGREGATION

IK10 IMPACT RESISTANT

IK10 IMPACT RESISTANT

UV STABILISED

UV STABILISED

LED ILLUMINATION

LED ILLUMINATION

IP66 WEATHER PROOF

IP66 WEATHER PROOF

CE CERTIFIED

CE CERTIFIED

SPECIFICATIONS

Materials
FR-VS UV Stabilised Polycarbonate | Alloy 6063 BS EN 10204:2004, BS EN 573-3:2013 & BS EN 755-2:2016
Dimensions
(W) 382.5mm x (H) 690mm-1690mm x (D) 262.5mm
IP Rating
IP66 BS EN 60529
Typical AVG Weight
16-25kg
Overload & Fault
Current Protection
MCB/RCD or RCBO IEC 60898-1/IEC 60947-1/IEC 61009-1

ANODISED ALUMINIUM PEDESTALS

OPTIONAL EXTRAS

Extruded anodised aluminium door

TV, telephone and data outlets

Photocell controlled lighting and LED colours

Electric and water metering

Panel colours and materials

Switching and control

Heat trace tape

Branding vinyls

MARINA SERVICES RELATED PRODUCT RANGES

Classic Pedestals

Classic Pedestals

Fin Pedestals

Fin Pedestals

MegaMaster

MegaMaster

PRODUCT CODES

MAQR0110 MAQR0110/KWH MAQR0110/KWH/TAP MAQR0110/TAP MAQR0120 MAQR0120/KWH MAQR0120/KWH/TAP MAQR0120/TAP MAQR0130 MAQR0130/KWH MAQR0130/KWH/TAP MAQR0130/TAP MAQR0140 MAQR0140/KWH MAQR0140/KWH/TAP MAQR0140/TAP MAQR0145 MAQR0150 MAQR0160 MAQR0165 MAQR0170 MAQR0001 MAQR0010 MAQR0010/KWH MAQR0010/KWH/TAP MAQR0010/TAP MAQR0020 MAQR0020/KWH MAQR0020/KWH/TAP MAQR0020/TAP MAQR0030 MAQR0030/KWH MAQR0030/KWH/TAP MAQR0030/TAP MAQR0040 MAQR0040/KWH MAQR0040/KWH/TAP MAQR0040/TAP MAQR0045 MAQR0050 MAQR0060 MAQR0065 MAQR0070 MAQR0001 MAQR0210 MAQR0210/KWH MAQR0210/KWH/TAP MAQR0210/TAP MAQR0220 MAQR0220/KWH MAQR0220/KWH/TAP MAQR0220/TAP MAQR0230 MAQR0230/KWH MAQR0230/KWH/TAP MAQR0230/TAP MAQR0240 MAQR0240/KWH MAQR0240/KWH/TAP MAQR0240/TAP MAQR0245 MAQR0250 MAQR0260 MAQR0265 MAQR0270 MAQR0001 MAQR0310 MAQR0310/KWH MAQR0310/KWH/TAP MAQR0310/TAP MAQR0320 MAQR0320/KWH MAQR0320/KWH/TAP MAQR0320/TAP MAQR0330 MAQR0330/KWH MAQR0330/KWH/TAP MAQR0330/ TAP MAQR0340 MAQR0340/KWH MAQR0340/KWH/TAP MAQR0340/TAP MAQR0345 MAQR0350 MAQR0365 MAQR0370 MAQR0001 MAQR0410 MAQR0410/KWH MAQR0410/KWH/TAP MAQR0410/TAP MAQR0420 MAQR0420/KWH MAQR0420/KWH/TAP MAQR0420/TAP MAQR0430 MAQR0430/KWH MAQR0430/KWH/TAP MAQR0430/TAP MAQR0440 MAQR0440/KWH MAQR0440/KWH/TAP MAQR0440/TAP MAQR0445 MAQR0450 MAQR0460 MAQR0465 MAQR0470 MAQR0001 MAQR1000 GMQR0010 AKR9033
