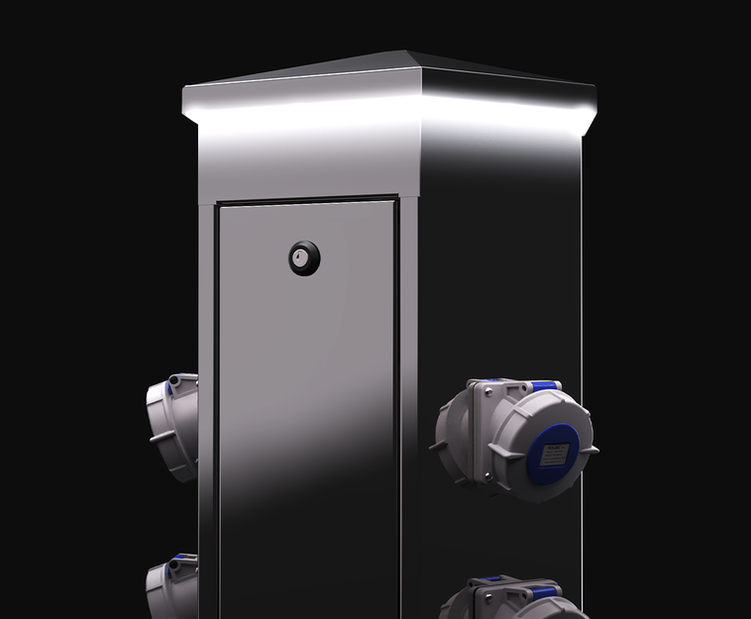

HEX
PEDESTAL
Built for demanding marine environments, the HEX service pedestal delivers a sophisticated design and sleek functionality.
Made from powder coated steel or marine-grade polished stainless steel, it withstands harsh coastal conditions while adapting to your requirements, providing a combination of electrical outlets, water supplies, and LED lighting.
With over 35 years of ROLEC engineering behind it, the HEX combines premium materials with a modular design that can accommodate metering and smart management systems.
A versatile solution for marinas and waterfront developments seeking performance, reliability, and adaptability.
KEY FEATURES
Internal electric, water
& lighting segregation
Optional metering for accurate billing
Multiple outlet
variations
Strong, durable
& compliant
Easy to install
& maintain
Designed & Manufactured
in the UK
SPECIFICATIONS
MATERIALS
Heavy duty 1.5mm Steel applied with 45–55 microns of Zinc primer and textured Polyester powder coating or 304 / 316 Stainless Steel
DIMENSIONS
406mm x 1153mm x 348mm (W x H x D)
ENVIRONMENTAL
Ingress Protection - Enclosure IP66, Socket IP44 or IP67
Impact Protection: IK10
WEIGHT
< 45kg (model dependent)
PROTECTION
• MCBs IEC 60898-1
• RCD or RCBO BS EN IEC 61009-1
Need help with your marina or waterfront destinations?
Give us a call on +44 (0) 1205 724 754
PREMIUM VERSATILE & ROBUST PEDESTALS
SUITABLE FOR
MARINAS
WATERFRONTS
PONTOONS
PRIVATE MOORINGS
OPTIONAL EXTRAS
TV, telephone and data outlets
Photocell controlled lighting and LED colours
Electric and water metering
Materials
Switching and control
Heat trace tape
Branding vinyls
