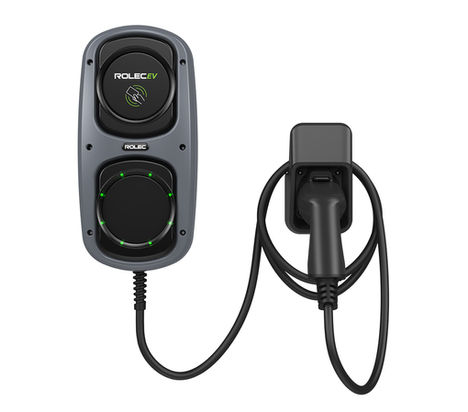

WALLPOD
Intelligent EV charging unit
The WALLPOD is an affordable and reliable EV charging unit, which is ideal for both domestic and commercial locations, providing up to 7.4kW fast charging.
This future-proof OCPP compliant unit can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system.
KEY FEATURES
OCPP 1.6
compliant
Branding & colour
options available
Grant
fundable
Optional RFID
card / fob operation
4G / WI-FI / Ethernet
enabled
IP rated &
UV stabilised
Future-proof & feature rich
Suitable for both domestic and commercial installations
Plug & charge, mobile app or RFID controlled charging
Universal charging socket or Type 2 tethered lead
Up to 7.4kW charging output
PME fault detection (no earth rod required)
Dynamic load balancing (CT clamp & cable included)
Solar PV, battery storage or wind turbine integration*
Alexa & Google assistant compatible*
OCPP 1.6 compliant (Can integrate with any back-office)
Over-the-air firmware / software updates
Built-in over current & 6mA DC leakage protection
Cable lock feature (can be permanently locked by user)
Integrated RFID reader
MID-approved energy metering
4G / Wi-Fi / Ethernet connectivity
IK10 impact resistant design
Wall or post mounted
OZEV grant fundable
Designed & manufactured in the UK
15 YEARS IN THE MAKING & A POPULAR INTELLIGENT EV CHARGER FOR BOTH DOMESTIC & WORKPLACE REQUIREMENTS
SUITABLE FOR
HOMES
GARAGES
RESIDENTIAL
WORKPLACES
SPECIFICATIONS
MATERIALS
High impact resistant Polycarbonate
ENCLOSURE DIMENSIONS
179mm (W)
367mm (H)
142mm (D)
CHARGE PROTOCOL
Mode 3
INPUT VOLTAGE
230V AC (±10 %)
50/60Hz (Single Phase)
PROTECTION
Over current protection | DC fault protection - 6mA | Lightning surge, over temperature protection | PME fault detection | Load balancing
OPTIONS & ACCESSORIES
• RFID0010 | RFID card
• RFID0020 | RFID fob
• EVFP0030 | Mounting post – fits up to 2 chargers
• EVFP0040 | WallPod plate for mounting post
• EVCB0020 | Root mount protection barrier – 48mm
• EVCB0040 | Surface mount protection barrier – 48mm
• EVPS0010 | EV parking sign – A4 landscape (Other sizes are available)
• EVPP0100 | 5m 32A Type 2 to Type 2 charging cable
• EVPP0107 | 10m 32A Type 2 to Type 2 charging cable
• EVIN0010 | 20A Single Phase EV consumer unit with Type A RCBO
• EVIN0015 | 40A Single Phase EV consumer unit with Type A RCBO
• EVRS0030 | Remote wall mount for Type 2 plug holster
• ACSR0125 | 100A up to 35mm² screened CT clamp with 10m cable
• ACSR0520 | Enegic fuse protection device – 36mm connectors
• ACSR0530 | Enegic fuse protection device – 100mm connectors
• Branding options available
