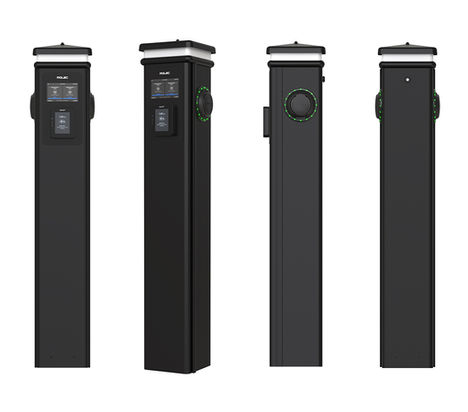

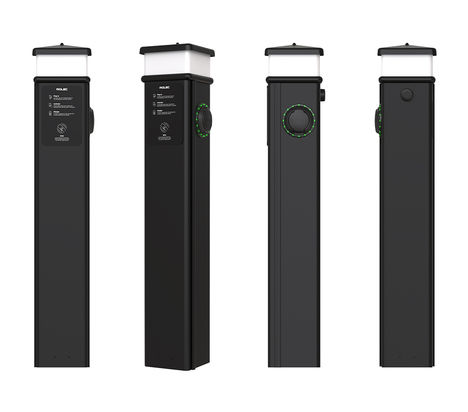

BASICCHARGE
Intelligent EV charging pedestal
The BASICCHARGE is a simplistic and affordable EV charging pedestal. This versatile charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.
This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system.
Framtidssäker och funktionsrik
Plug & go, app, contactless payment (model dependant), or
RFID controlled charging
Choose from 1x or 2x universal charging socket(s)
Up to 7.4kW or 22kW charging output(s)
PME fault detection (no earth rod required)
Supports dynamic load balancing & static load management
OCPP 1.6 compliant (integrates with any CPMS)
Over-the-air firmware / software updates
Built-in AC overload & fault current protection (RCBO)
Built-in 6mA DC leakage protection
Dual tamper and breach security notification
Cable lock security feature (can be permanently locked by owner)
LED amenity lighting head (Photocell controlled)
MID-approved energy metering
4G / Wi-Fi / Ethernet connectivity
Conforms with PAS 1899 accessible charging standard (model dependant)
Strong and durable IP54 / IK10 rated
Surface or root mountable
Funding, operation, & maintenance options
3 Year warranty
NYCKELFUNKTIONER
OCPP 1.6
compliant
Branding & colour
options available
Grant
fundable
LED amenity
lighting
4G / WI-FI / Ethernet
enabled
IP rated &
UV stabilised
THE SIMPLE YET EFFECTIVE INTELLIGENT EV CHARGER, SUITABLE FOR ALL LOCATIONS
SUITABLE FOR
CAR PARKS
WORKPLACES
DEVELOPMENT SITES
PUBLIC LOCATIONS
SPECIFIKATIONER
MATERIALS
Substructure – Hot-dipped Galvanised Steel
Panels – 3.2mm Aluminium composite
Heavy duty 1.5mm Steel applied with 45–55 microns of Zinc primer (models with contactless payment terminal)
Lens – High impact resistant 3mm Polycarbonate
Lid/collar – ABS Granulate Natural Polyethylene
DIMENSIONS
205mm (W)
1130mm (H)
205mm (D)
CHARGE PROTOCOL
Mode 3
INPUT VOLTAGE
230V AC (±10 %)
50/60Hz (Single Phase)
400V AC (±10 %)
50/60Hz (3 Phase)
PROTECTION
AC overload & fault current protection | DC fault protection - 6mA | Lightning surge, over temperature protection | PME fault detection | Supports dynamic & static load balancing
CHARGEPOINT MANAGEMENT & OPERATION
ROLEC EV chargepoints boast an array of intelligent features. When combined with any approved OCPP compliant chargepoint management system (CPMS), chargepoint operators will have the ability to deploy and self-manage their own public and/or private EV charging network.
OPTIONS & ACCESSORIES
• RFID0010 | RFID card
• RFID0020 | RFID fob
• GMCP0010 | Ground mounting base for BasicCharge pedestal
• EVCB0020 | Root mount protection barrier – 48mm
• EVCB0040 | Surface mount protection barrier – 48mm
• EVPS0015 | EV parking sign – A4 landscape (Other sizes are available)
• EVPP0100 | 5m 32A Type 2 to Type 2 charging cable (10m options available)
• EVPP0105 | 5m 32A Three Phase Type 2 to Type 2 charging cable (10m options available)
• ACSR0125-F | 100A up to 35mm² screened CT clamp with 10m cable
• ACSR0525 | Perific Max Fuse Protection Device with 3x 900A up to 36mm² Current Sensors
• ACSR0535 | Perific Max Fuse Protection Device with 3x 900A up to 100mm² Current Sensors
• ACSR0545 | Perific Max LAN Accessory Input Kit
• Tethered models available upon request
• Branding & colour options available
